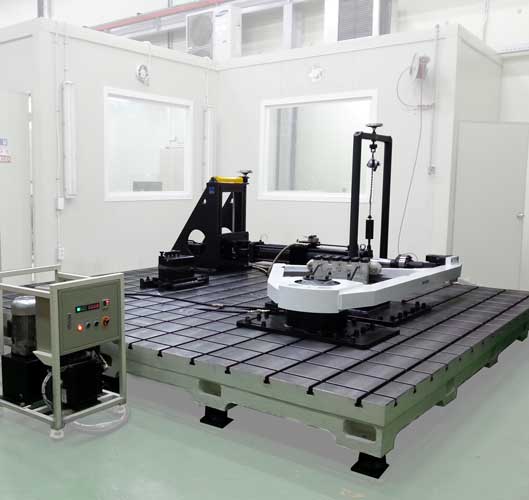

Wind Turbine Brake Simulator

본문

▪️ A simulator that reproduces various conditions in the laboratory to test directional control brakes used in wind turbines.
▪️ Controls external loads applied to the brake and the supply pressure of the working fluid used for braking during wind turbine operation to maintain position.
▪️ Video
▶

▪️Control Channels: 3 channels (Brake external load actuator, 2 types of brake pressure generation devices)

▪️Control Modes: Displacement / Force control, Pressure control

▪️Actuator Specifications: Stroke ±300 mm, Load ±270 kN

▪️Brake Pressure Generation Device Specifications: 4.5 LPM / 210 bar, 5.7 LPM / 350 bar
