VersaTest Pro / SWG / RDA

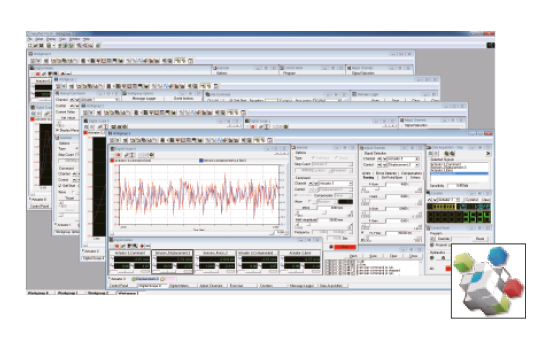

VersaTest Pro
With powerful features such as sensor and workgroup management, online parameter editing, command generation, and real-time data monitoring and storage, VersaTest Pro offers exceptional versatility. Users can freely configure the testing environment to suit their specific needs. The software has been recognized for its outstanding performance and reliability by numerous clients.
-
· Multi-axis actuator control
· Independent multi-workgroup operation
· Sensor management and configuration
· User-defined control mode settings (up to 3 modes)
· Remote control and monitoring of HPS and HSM
· Support for various waveform types (simple, combined, data file, voltage signal)
· Real-time parameter adjustment during operation
· Adaptive compensation functions for changing test conditions
· Real-time data monitoring (Digital Scope, Digital Meters, etc.)
· System control based on signal conditions (Limit, Error, etc.)
· Customizable test environment and screen layout
· Conditional real-time XY plotting during tests
· Analog voltage output for arbitrary signals
· Remote JOG control functionality
· Simulation of virtual operating states
· Event actions during operation (e.g., Command Off, Hydraulics Off)
· Message log for recording test progress and system status
Key Features

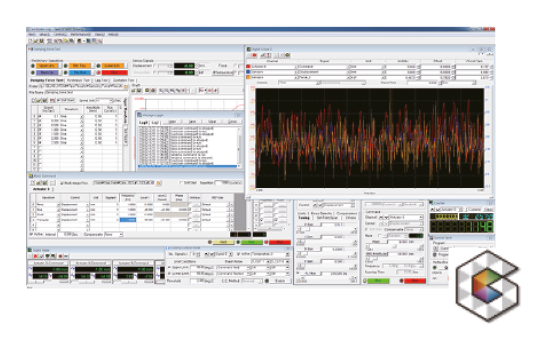

SWG (Seed of Wild Ginseng)
By streamlining only the core features required from the general-purpose VersaTest Pro, SWG offers enhanced cost-efficiency. It also includes specialized functions such as performance testing, making it adaptable to a wide range of testing scenarios.
-
· Multi-axis actuator control
· Single workgroup operation
· Core and essential functions of VersaTest Pro
· Sensor management and configuration
· Remote control and monitoring of HPS and HSM
· Support for various waveform types (simple, combined, data file, voltage signal)
· Real-time parameter adjustment during operation
· Real-time data monitoring (Digital Scope, Digital Meters, etc.)
· System control based on signal conditions (Limit, Error, etc.)
· Customizable test environment and screen layout
· Simulation of virtual operating states
· Event actions during operation (e.g., Command Off, Hydraulics Off)
· Message log for recording test progress and system status
· Expandable features based on user requirements (e.g., Performance Test, Test Report)
Key Features
RDA+ (Random Data Analyzer+)
As the automotive industry faces increasing demands for extended vehicle lifespan, improving the
durability of individual components has become a critical challenge. Since dynamic external forces
acting on vehicles are difficult to measure directly, it is essential to predict and reproduce input
signals using system output data. This process requires solving complex problems such as accurate
system identification, noise filtering, and measurement error correction.
RDA+ addresses these challenges by enabling precise reproduction of target input files within
acceptable tolerance ranges, based on test specifications. The software controls actuators
accordingly, offering a cost-effective alternative to high-priced foreign solutions without
compromising performance.
-
· Non-square matrix processing
· Simple system identification and validation
· Graphical data viewing and editing (FFT, integration, differentiation, filtering, etc.)
· Flexible control and response assignment
· Simple iterative compensation
· Waveform generation
· Data column editing
· File merging
· Data analysis: Min/Max, RMS, Average, Peak/Valley
· Real-time digital scope and meter
