Automotive

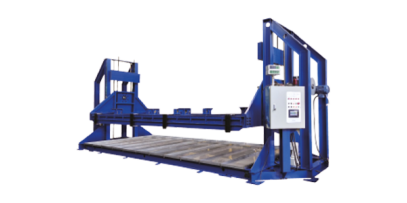

    • Static Rollover Test Equipment for Electric & Hydrogen Vehicles

    • Control Axis : 2ch (2-Electric-Rotary/Vertical)
    • Control Mode : Angle/Speed/Height
    • Specifications
    • -Vehicle Support Frame : 9.2 m (L) × 3.0 m (W) × 3.1 m (H)
    • -Rotating Frame : 6.5 m (L) × 2.5 m (W), 5.5 ton
    • -Vertical Movement of Rotating Frame : 1.1m ~ 2.5m
    • -Adjustable Segmented Rotation Angle and Speed
    • Purpose : This system simulates static rollover and tilt scenarios that may occur after a vehicle crash, allowing evaluation of fuel leakage, hazardous material movement, and the behavior of interior components.

    • Tire Road Load Simulation Test System

    • Control Axes : 4ch (4-Electric-Rotary)
    • Control Mode : Angle/Force/Displacement/Speed
    • Specifications :
    • -Tire Drive Unit : 2000pi x 600(D) mm, ~100km/h
    • -Tire Motion Unit :
      · Steering : Angle ±15°, Speed ≤ 90°/s, Torque ≤ 700 Nm
      · Camber : Angle ±10°, Speed ≤ 10°/s
      · Radial : Max Force 20kN, Disp. 400mm, Speed 50mm/s
    • Purpose : A test system that simulates road surface loads applied to tires during vehicle operation.

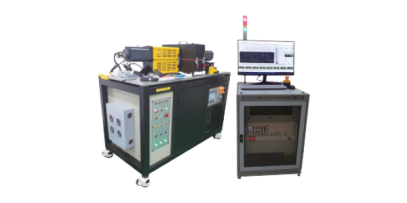

    • Environmental Durability Test System for R-EPS Belts

    • Control Axes : 4ch (3-Electric-Rotary/Linear, 1-Chamber)
    • Control Mode : Speed/Torque/Temperature/Initial Belt Tension
    • Specifications :
    • -Belt Tension : Max 100 N.m
    • -Drive/Driven Unit : 5kW(15.9 N.m & 3000 rpm)
    • -Insulation Chamber Range : -50 ~ 140 ℃
    • -Belt Tension and Noise measurement
    • Purpose : Evaluates the composite environmental durability of rubber belts applied in R-EPS (Rack-Type Electric Power Steering) systems under various thermal and mechanical conditions.

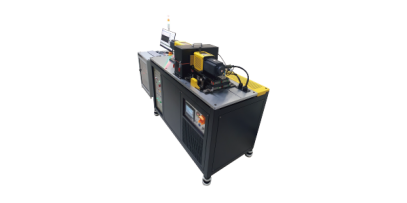

    • Environmental Durability Test System for R-EPS Belts

    • Control Axes: 3ch (2-Electric-Rotary, 1-Chamber)
    • Control Mode : Speed/Torque/Temp.
    • Specificationsc :
    • -Belt Tension : Max 100 N.m
    • -Drive/Driven Unit : 3.5kW(10.5 N.m & 3000 rpm)
    • -Insulation Chamber Range : -50~140 ℃
    • Purpose : Evaluates the composite environmental durability of rubber belts applied in R-EPS (Rack-Type Electric Power Steering) systems under various thermal and mechanical conditions.

    • Double Clutch Oil Seal Reliability Test System

    • Control Axes : 2ch (2-Hydraulic-Linear)
    • Control Mode : Displacement/Pressure
    • Specifications :
    • -Stroke Range : ± 12.7mm
    • -Pressure range : 0~100 bar
    • Purpose : Hydraulic pressure is applied to the Hyd. Supply Block jig located inside the chamber to evaluate the reliability of the double clutch oil seal.

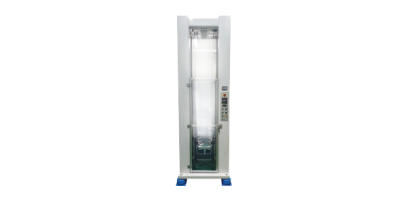

    • Rebound Impact Test System

    • Specifications :
    • -Drop Weight : 10~100kg
    • -Drop Height : Rebound 1,500mm, Compress 1,000mm
    • Purpose : A weighted impactor is dropped from a fixed height to apply force in either the tensile or compressive direction, enabling evaluation of shock absorber stiffness.
