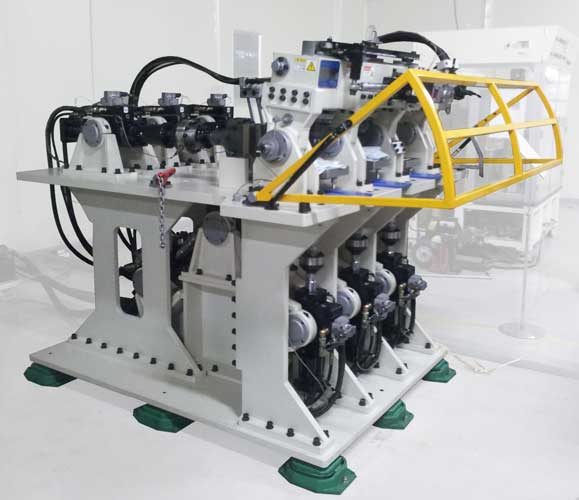

3-Ball Joint Environmental Durability Tester

본문

  • ▪️ A test system designed to evaluate the durability of up to three ball joints simultaneously by applying loads in horizontal, vertical, oscillating, and rotational directions.

    ▪️ Each ball joint specimen is enclosed in a dedicated chamber, allowing durability testing under controlled environmental conditions such as temperature, humidity, saltwater, and muddy water.

    ▪️ Video

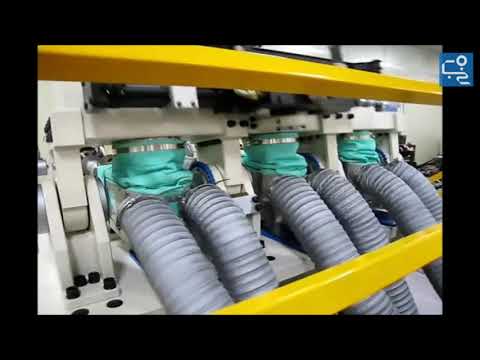

  • Youtube Thumbnail

Key Features

▪️Control Channels: 8 channels (Horizontal [Q] × 3, Vertical [P] × 3, Rotation, Oscillation)

▪️Control Modes: Displacement / Force / Angle control

▪️Actuator Specifications : Horizontal Load ±50kN / Vertical Load ±25kN / Rotation ±45deg

▪️Specimen Mounting Capacity: 1 to 3 specimens

▪️Environmental Conditions: Temperature, humidity, salt water, muddy water, etc.
