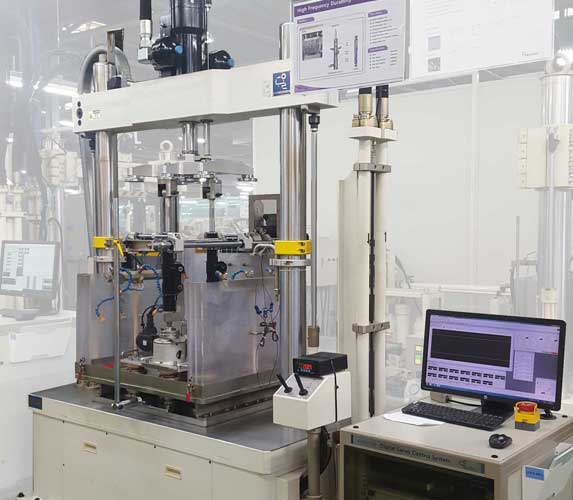

Shock Absorber Durability Tester

본문

A test system designed to evaluate the performance and durability of shock absorbers under various load conditions, applied individually or in combination.
▪️Vertical Excitation: Simulates primary motion-direction loading
▪️Horizontal Excitation: Applies side force loading
▪️Rotational Drive: Introduces frictional load through body rotation

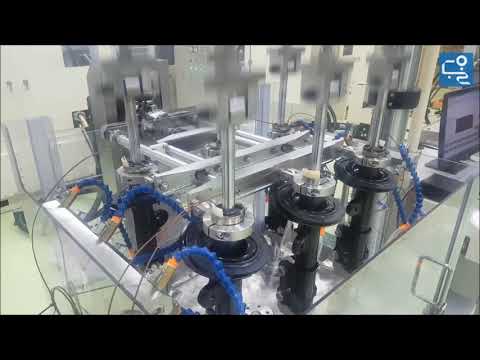

▪️Video
▶

▪️Control Channels: 3 channels (Vertical, Horizontal, Rotational)

▪️Control Modes: Displacement / Force / Angle / Torque control

▪️Actuator Specifications: Vertical ±125mm, ±27kN / Horizontal ±25mm, ±10kN / Rotation ±45deg, ±100Nm

▪️Specimen Mounting Capacity: 1 to 7 specimens (symmetrical arrangement)

▪️Specimen Cooling: Water-cooled (air-cooled when rotational drive is included in the test)

▪️Functionality: Reproduction of real vehicle driving conditions using RLD data
