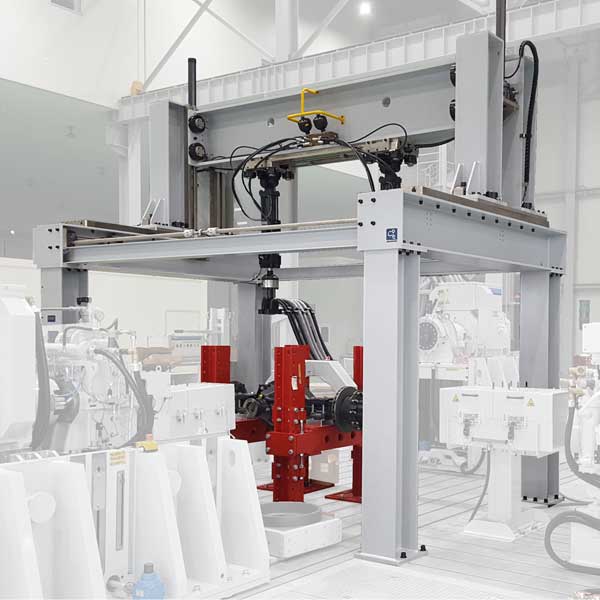

Axle Durability Tester
본문
-
▪ Simulates real-world road-induced load conditions (force and displacement) on a vehicle axle during dynamo-driven axle operation.
▪ A test system that evaluates axle durability under combined loading conditions by simultaneously applying rotational loads via a dynamo and force/displacement loads via actuators.▪ Video
-
▶
Key Features
▪️Control Channels: 2 channels (Vertical Left, Vertical Right)
▪️Control Modes: Displacement / Force control
▪️Actuator Specifications: Stroke ±100 mm / Load ±150 kN
▪️Main Frame and Vertical Actuator: Movable in X, Y, Z directions
▪️Integration: Capable of synchronized operation with external controller for dynamo drive (displacement, load)
-
