Strut Rotational Moment Measurement Tester

본문

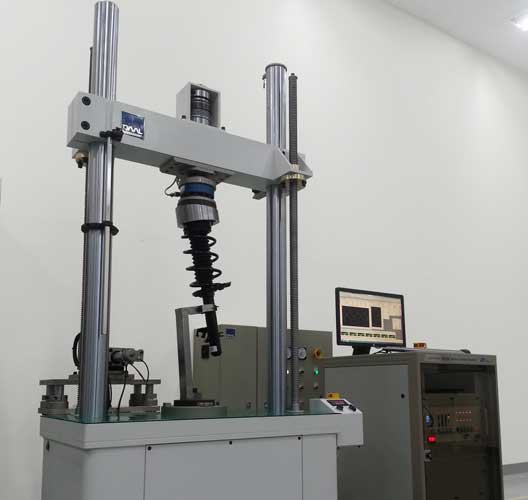

▪️ A test device that measures the rotational moment expected during cornering by installing a strut shock absorber under actual vehicle mounting conditions.
▪️ Allows adjustment of initial compression load using a crosshead, and simulates rotation through two methods: central axis rotation via a lower rotary actuator and tangential rotation via a linear actuator.

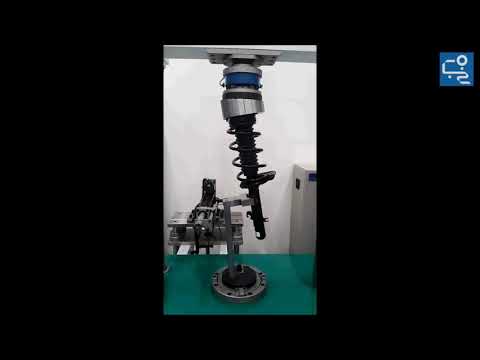

▪️ Video
▶

▪️Control Channels: 2 channels (Linear Actuator, Rotary Actuator)

▪️Control Modes: Displacement / Force control, Angle / Torque control

▪️Linear Actuator Specifications: Stroke ±100 mm, Load ±2 kN

▪️Rotary Actuator Specifications: Angle ±300°, Torque ±450 N·m

▪️Cross Head Compression Load: Up to 20 kN

▪️Axial Torsion Load Cell applied
