Hydraulic Service Manifold
Hydraulic Service Manifold (HSM)
DAAL SYSTEM offers HSMs capable of managing up to four independent devices using the discharge flow from a single Hydraulic Power Unit (HPU).
-

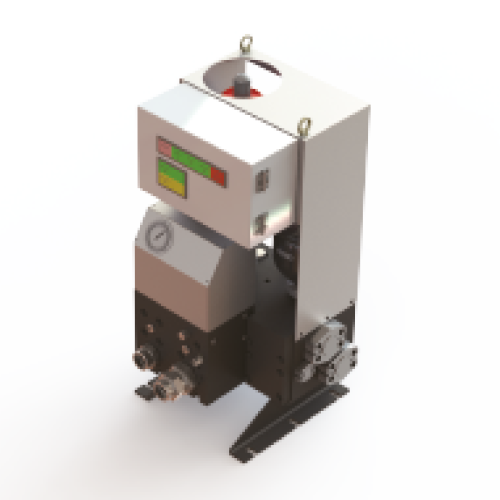

1-Section
-

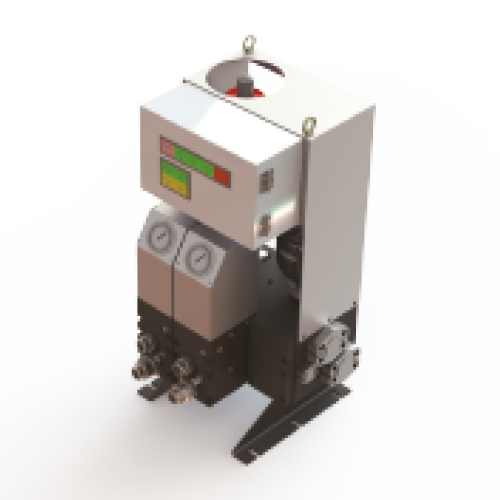

2-Section
-
3-Section
-

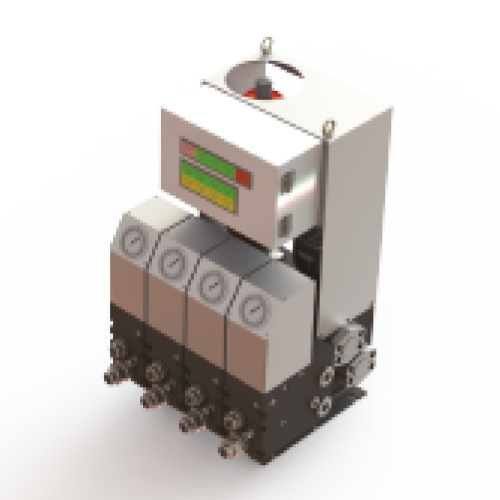

4-Section
-
1-Sync Section
DAAL SYSTEM’s HSM eliminates pulsation phenomena during actuator and equipment operation by
applying accumulators to both the supply and return hydraulic lines. Its energy compensation
function ensures stable hydraulic energy delivery even under sudden pressure and speed
changes.
The external status indicator on the HSM control box allows direct monitoring of the HPU’s
operational state.
By enabling individual pressure and flow control per section, the HSM contributes
significantly to cost and space efficiency. Additionally, an optional high-pressure filter
can be applied to the supply line to further enhance the cleanliness of the hydraulic fluid
delivered to the equipment.
Features
· Number of Sections: 1 ~ 4
· Flow Rates: 110 ~ 440LPM
· Operating Pressure: 210bar
· Independent Pressure and Flow Control
· Modular Design: Excellent installation flexibility and maintainability
· Built-in HPU Status Indicator
· Enhanced System Cleanliness with optional high-pressure filter
· High-Pressure Filter: 5㎛ standard (3㎛ available upon request)
· Flow Rates: 110 ~ 440LPM
· Operating Pressure: 210bar
· Independent Pressure and Flow Control
· Modular Design: Excellent installation flexibility and maintainability
· Built-in HPU Status Indicator
· Enhanced System Cleanliness with optional high-pressure filter
· High-Pressure Filter: 5㎛ standard (3㎛ available upon request)
