Product

Battery

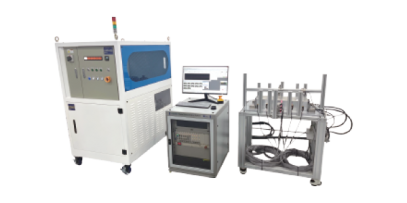

    • Battery Expansion Load Simulation System (Hungary)

    • Control Axes : 2ch (2-Hydraulic-Linear)
    • Control Mode : Force/Pressure
    • Specifications :
    • -Horizontal 30mm/+210kN(55kNx4ea)
    • -Vertical 16mm/+30kN
    • Purpose : Real-time monitoring of deformation in the battery module case by applying loads in both front–rear and vertical directions from inside the case.

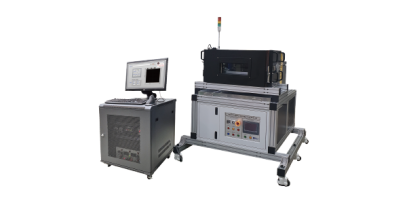

    • Battery Expansion Load Simulation System

    • Control Axes : 2ch (2-Hydraulic-Linear)
    • Control Mode : Force/Pressure
    • Specifications :
    • -Horizontal 30mm/+210kN(55kNx4ea)
    • -Vertical 16mm/+30kN
    • Purpose : Real-time monitoring of deformation in the battery module case by applying loads in both front–rear and vertical directions from inside the case.

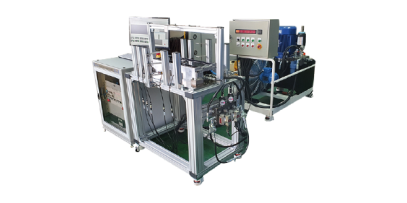

    • Battery Module Stiffness Test System

    • Control Axes : 2ch (2-Electric-Linear)
    • Control Mode : Displacement/Force/F-D
    • Specifications :
    • - Displacement 50mm, Force 200kN
    • - Load Application Method : Screw Jack with Servo Motor
    • - Temperature Range : RT ~ 80℃
    • - Automatic exhaust and water supply system
    • Purpose : Real-time simulation system for battery cell module stiffness.

    • Multifunctional Battery Calorimeter

    • Measurement Method : Isothermal Calorimetry
    • Target Specimens : Lithium-ion Battery Cells
      -Pouch Type : Max 545(L) x 120(W) mm
      -Cylinder Type : Max 46(D) x 80(H) mm
    • Measurement :
      -Heat Generation Rate(HGR)
      -Entropy Coefficient
      -Temperature, Pressure, and Heat Flux
      -Charge/Discharge Voltage
    • Purpose : During battery charge and discharge cycles, thermoelectric elements are used to maintain the cell in an isothermal state, enabling real-time measurement of heat flux and accurate tracking of heat generation and entropy over time.
