Other Industries

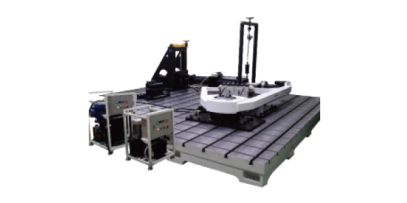

    • Wind Turbine Brake Simulator

    • Control Axis : 3ch (3-Hydraulic-Linear)
    • Control Mode : Displacement/Force/Pressure
    • Specifications : 600mm, 270kN, 4.5LPM(Low Pressure), 5.7LPM(High Pressure)
    • Purpose : Durability and performance evaluation of brakes using a brake simulator for wind turbines.

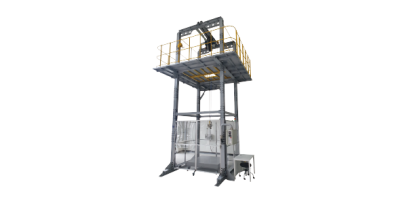

    • Impact Protection Performance Evaluation System

    • Specifications :
      Drop Height : Max. 5,800mm
      Hoist Capacity : 490kgf
      Loadcell Capacity : 3,000kgf
    • Purpose : To evaluate the protective performance of safety equipment—such as belts, ropes, and harnesses—by simulating fall and drop scenarios using a human torso dummy.

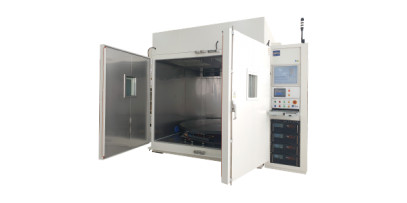

    • Environmental Aging Test Chamber

    • Specifications : -Light Source: Metal Halide Lamp 4 kW × 4 units
      -Chamber Dimensions: 2300 W × 2300 D × 1800 H mm
      -Temperature Range -40~ 120deg, - Humidity Range 20~98%
      -Lower Rotating Load Capacity 300 kgf, Rotational Speed 0~6 RPM
    • Purpose : To evaluate the degradation characteristics and perform accelerated life testing of personal protective equipment under combined environmental conditions (light, temperature, and humidity).

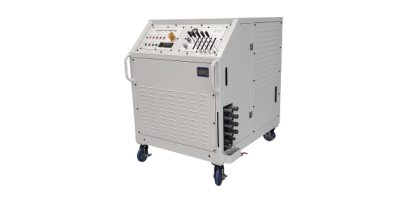

    • Hydraulic Test Unit for Agricultural Machinery Drive Systems

    • Specifications :
      -Input/Output Ports (P,T,D) 1 Set
      -Output Ports (A,B) 4 Sets, 65~70 LPM (@160 bar)
      -P.T.O Simulation : Max 350 RPM, 300 N.m (@160 bar)
    • Purpose : To evaluate abnormalities in agricultural machinery through hydraulic and joint connections.

    • High-Pressure Generation System

    • Specifications :
      -Burst Pressure: 3000bar (Discharge Flow Rate: 0.2LPM)
      -Durability Pressure: 800bar (Discharge Flow Rate: 15LPM)
      -SUS Tank Capacity: Approx. 200 liters
    • Purpose : To conduct durability and burst testing of pressure tanks using hydraulic pressure.

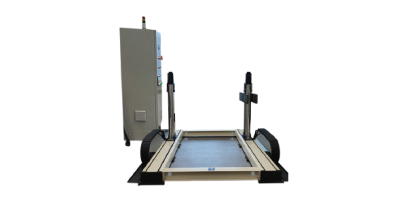

    • Large-Scale XY Stage System

    • Control Axes : 4ch (4-Electric-Linear)
    • Control Mode : Position
    • Specifications :
    • -Horizontal 2,350mm/180kgf, 2,500mm/s
    • -Vertical 850mm/320kgf, 1,000mm/s
    • Purpose : Designed to mount X-ray imaging equipment and track a target during human walking motion, this large-scale XY stage system enables dynamic positioning for motion-based imaging applications.
