Retrofitting Aging Equipment

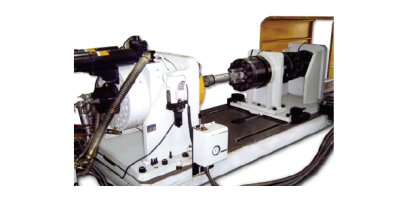

    • Controller Replacement for SAGINOMIYA Torsion Tester

    • Control Axis : 2ch (2-Hydraulic-Rotary)
    • Control Mode : Angle/Torque
    • Specifications : ±50deg, ±300/3000kgf.m
    • Purpose : Durability testing of the drive components in large vehicles

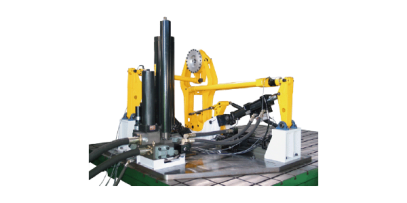

    • Controller Replacement and Upgrade for 2-Axis Universal Durability Tester

    • Control Axis : 2ch (2-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±1mm/50Hz, ±30kN
    • Purpose : Performance and durability evaluation of standard specimens and automotive components (for RLD simulation)

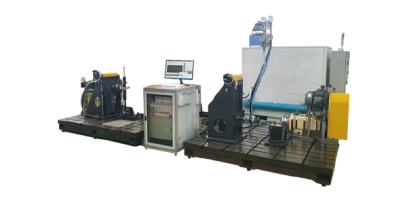

    • Controller Replacement and Upgrade for 3-Axis Road Simulator

    • Control Axis : 3ch (3-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±1mm 50Hz, ±25,30,75kN
    • Purpose : For RLD simulation and durability testing of automotive suspension components using a road simulator

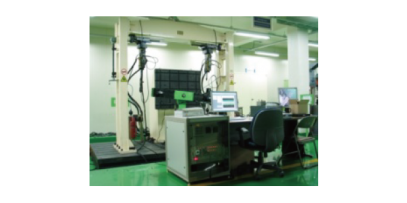

    • Controller Replacement and Modification for 4-Channel Stabilizer Bar Tester

    • Control Axis : 4ch (4-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : 300mm, ±40kN
    • Purpose : Durability evaluation of stabilizer bars and automotive components (for RLD simulation)

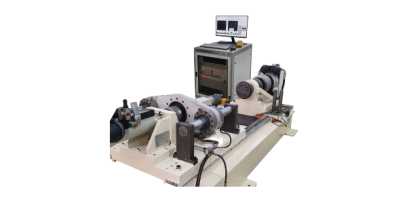

    • Replacement of Control Unit for Large Rotary Actuator

    • Control Axis : 2ch (1-Hydraulic-Linear,1-Hydraulic-Rotary)
    • Control Mode : Displacement/Force/Angle/Torque
    • - Specifications : Linear ±125mm, ±40kN
      Rotary ±60deg, ±8,000Nm
    • Purpose : Fatigue and durability evaluation of torsional drive components in large vehicles

    • Replacement of Control Unit for Universal Horizontal Durability Tester

    • Control Axis : 3ch (3-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±125mm /±50kN
    • Purpose : To evaluate the durability performance of shock absorber components using various dedicated jigs mounted horizontally on actuators fixed to a reaction BRK.
