Product

Defense

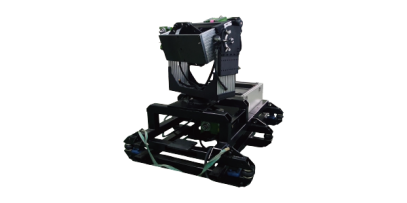

    • Rapid Maneuver Simulation System

    • Control Axis : 3ch (3-Electric-Rotary)
    • Control Mode : Angle
    • Specifications :
    • -Payload Actuation Load: Up to 200 kg
      -Payload Dimensions: Dia. 16 inch, Length 650mm(TBD)
    • -Degrees of Freedom (3DOF) :
    • · Yaw (+/-110deg, 1 rad/s)
      · Pitch (+/-40deg, 1 rad/s)
      · Roll (+/-110deg, 3 rad/s)
    • Purpose : Simulation of Three-Degree-of-Freedom Maneuvers for Evaluating the Performance of Aircraft Components.

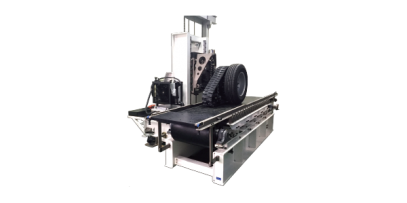

    • Smart Wheel Performance Test Rig

    • Specifications :
      -Simulates the dynamic body behavior of a 1:4 scale smart wheel model during driving
      -Emulates driving speed and road surface resistance
    • Purpose : Evaluates the driving performance of the scaled smart wheel model under real vehicle-mounted conditions, considering various road surface scenarios.

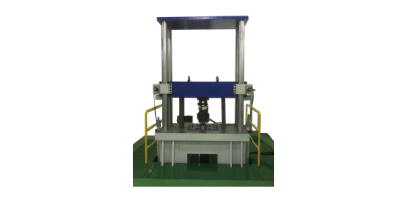

    • Durability Test System for Tank Hydraulic Suspensio

    • Control Axis : 1ch (1-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : 750mm/±50ton
    • Purpose : Durability evaluation of the ISU (In-arm Suspension Unit) suspension system.

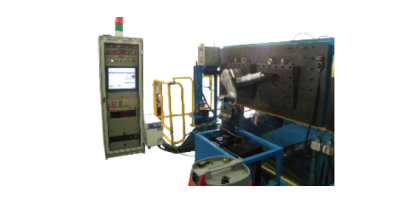

    • Digital Servo Controller for K55A1

    • Control Axis : 1ch (1-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±200mm/±10ton
    • Purpose : Performance evaluation of the suspension system for K55A1.

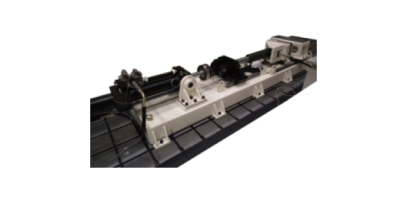

    • Digital Servo Controller for TAC Cylinder Testing

    • Control Axis : 1ch (1-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±250mm/±50ton
    • Purpose : Durability evaluation of the TAC cylinder.

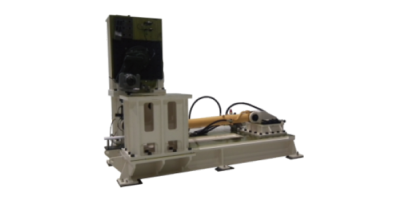

    • Digital Servo
      Controller for K21

    • Control Axis : 1ch (1-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±350mm/±50ton
    • Purpose : Performance evaluation of ISU (In-arm Suspension Unit) and HSU (Hydropneumatic Suspension Unit) suspension systems.
