Customized Testing Instrument

HOME • Product • Customized Testing Instrument • Automotive

Product

Automotive

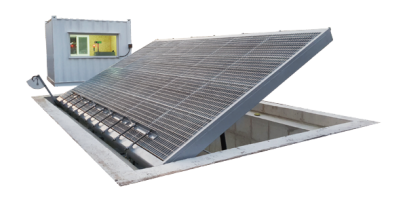

    • Tilt Platform

    • Control Axis : 1ch (1-Electric-Inverter)
    • Control Mode : Angle/Speed
    • Specifications :
    • -Angle : 0~35deg
    • -Speed : Max 0.5deg/sec
    • -Limit Sensor Stop
    • Purpose : By placing the vehicle on a tiltable platform and adjusting the slope angle, the system assesses vehicle stability and safety across different incline scenarios.

    • Axle Durability Test System

    • Control Axes : 2ch (2-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±100mm/±15ton
    • - Vertical Loading Frame X, Y, Z movement
    • Purpose : External loads are applied during axle operation testing for construction vehicles to replicate real-world conditions and evaluate durability under simulated in-vehicle environments.

    • High-Frequency Durability Test System for Shock Absorbers

    • Control Axis : 2ch (2-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±125mm/±28kN, ±25mm/±10kN
    • Purpose : Assesses the durability performance of shock absorbers by simulating side force effects and high-speed usage conditions.

    • Universal Durability Test System

    • Control Axis : 1ch (1-Hydraulic-Linear)
    • Control Mode : Displacement/Force
    • Specifications : ±150mm/±30kN
    • Purpose : Durability evaluation of springs using a dedicated jig mounted on a vertical load frame positioned on a base plate.

    • Door Strength Test System

    • Control Axes : 2ch (1-Hydraulic-Linear, 1-Electric-Rotary)
    • Control Mode : Displacement/Force, Angle/Torque
    • Specifications : 600mm/±110kN, ±90deg/±318N·m
    • Purpose : Evaluation of side door strength, fatigue durability, opening/closing endurance, and frame stiffness.

    • Radius-Rod 3-Axis Durability Test System

    • Control Axes : (2-Hydraulic-Linear, 1-Hydraulic-Rotary)
    • Control Mode : Displacement/Force, Angle/Torque
    • Specifications : ±75mm/±67kN, ±125mm/±25kN
      ±150°/±592N·m
    • Purpose : Durability evaluation of the radius rod under axial displacement/load, rotational angle/torque, and lateral displacement/load conditions.
