Customized Testing Instrument

HOME • Product • Customized Testing Instrument • Automotive

Product

Automotive

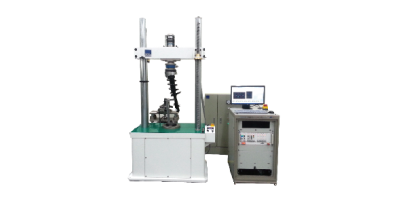

- Strut Rotational Moment Measurement System
- Control Axes : 3ch (1-Electric-Linear, 2-Electric-Rotary
- Control Mode : Displacement/Force , Angle/Torque
- Specifications : ±125mm/±20kN, ±100(300)N·m
- Purpose : Evaluation of the strut’s rotational torque characteristics under controlled loading conditions.

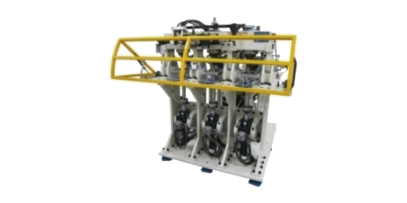

- Triple Ball Joint Environmental Durability Tester
- Control Axes : 8ch (8-Hydraulic-Linear)
- Control Mode : Displacement/Force
- Specifications : ±35mm, ±75mm, ±100mm, ±10000lbs, ±5000lbs
- Purpose : Simultaneous durability evaluation of three ball joints under applied environmental conditions.
